Energy Meter: L&T
Authorized Channel Partner

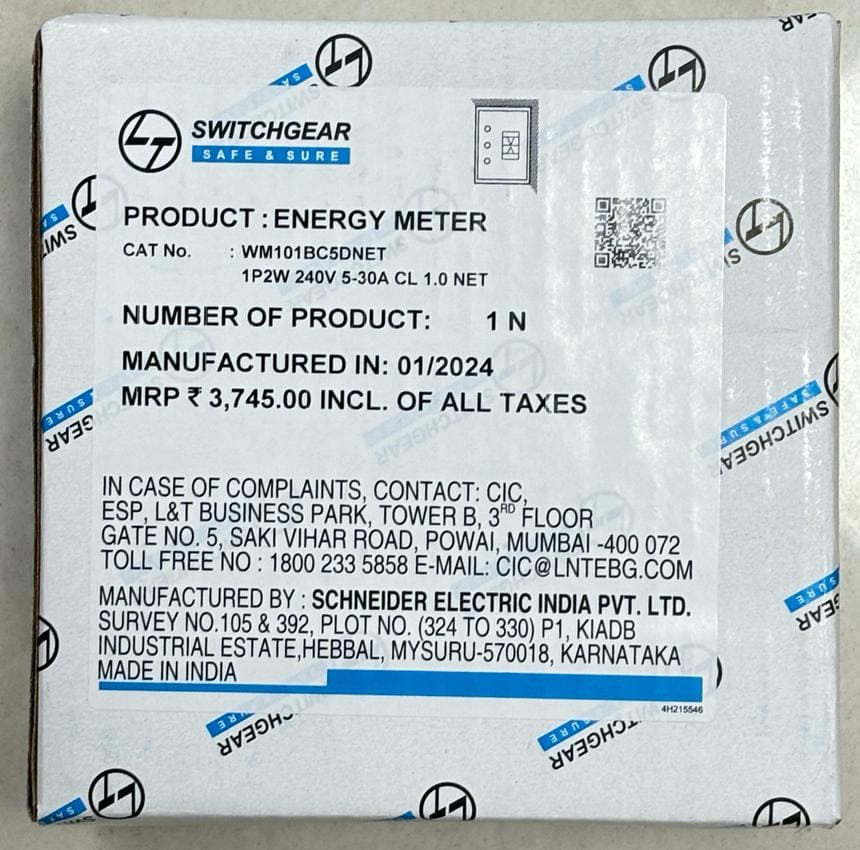

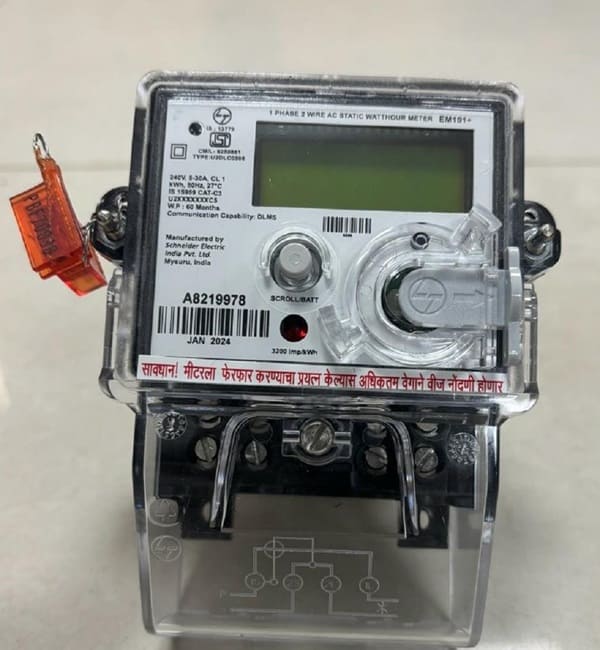

L&T 1ph 5-30 A Net
Usage as: Bidirectional Netmeter/ Import-Export Energy Meter for MSEDCL Or MSEB
- 1Phase 2Wire EM 240V
- 5-30A
- Accuracy 1.0 A
- DNET
- Measurement : KWh, V, A, KVAh, KVArh
- Warranty: 60 Months
- Cat No:- WM101BC5DNET

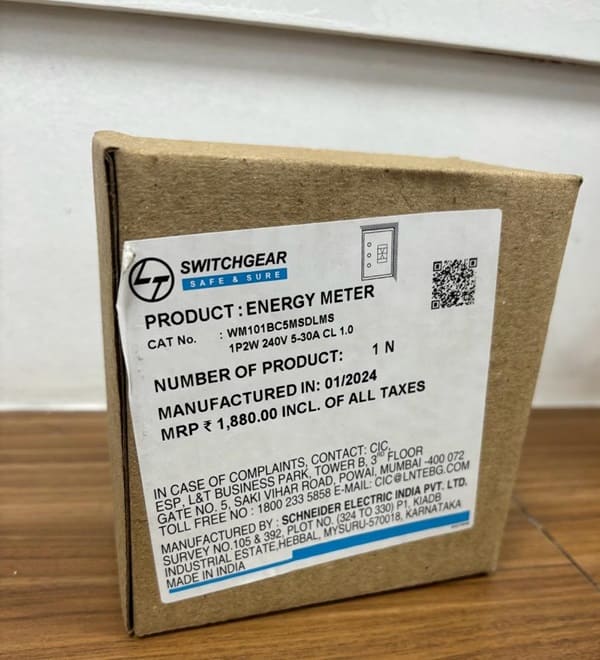

L&T 1ph 5-30 A DLMS Gen
Usage as: Unidirectional / Solar Generation for MSEDCL or MSEB / Sub Energy Meter 1Ph 2 Wire
- 1Phase 2Wire 240V
- 5-30A
- Accuracy 1.0 A
- 4G TTM MSEDCL
- Measurement : KWh, V, A, KVAh, KVArh, also TOD Energy Measurement for quadrant 1,2,3,4
- Warranty: 60 Months
- Cat No:- WM101BC5MSDLMS
L&T 3ph 10-40 A Net
Usage as: Bidirectional Netmeter/ Import-Export Energy Meter for MSEDCL Or MSEB
- 3Phase 4Wire TVM 3*240V
- 10.40A
- Accuracy : 1.0 A
- MSNET1
- Measurement : KWh, V, A, KVAh, KVArh
- Warranty: 60 Months
- Cat No:- WR300BC63MSNET1

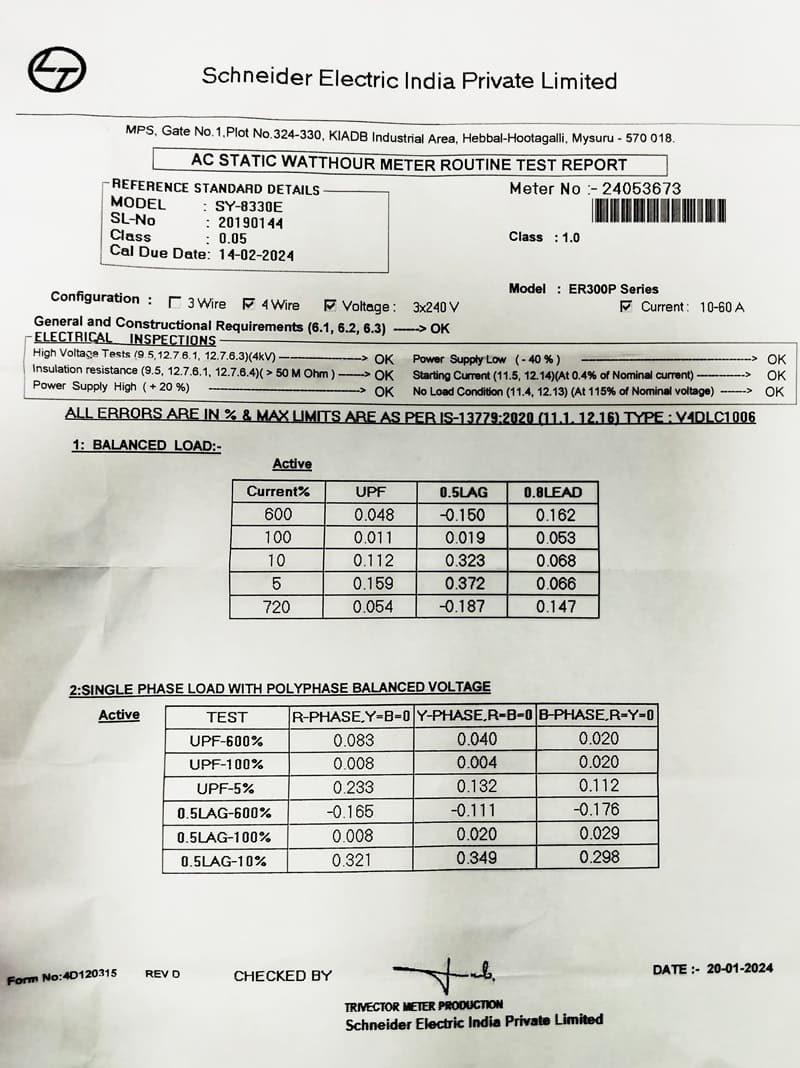

L&T 3ph 10-60 A DLMS Gen
Usage as: Unidirectional / Solar Generation for MSEDCL or MSEB / Sub Energy Meter 3Ph 4 Wire
- 3Phase 4Wire 3*240V
- 10-60A
- Accuracy : 1.0 A
- RS232 C2 MSDLMS
- Measurement : KWh, V, A, KVAh, KVArh, also TOD Energy Measurement for quadrant 1,2,3,4
- Warranty: 60 Months
- Cat No:- WR300BC63MSDLMS

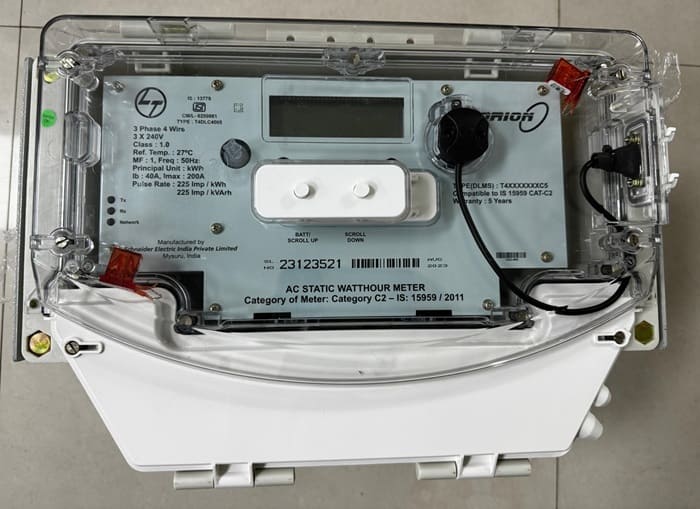

L&T 40-200 In-Built CT 3ph Net Meter
Usage as:Bidirectional Netmeter/ Import-Export Energy Meter for MSEDCL Or MSEB
- 3Phase 4Wire 3*240V
- 40-200A
- Accuracy : 1.0
- 4G TTM MSEDCL
- Measurement : KWh, V, A, KVAh, KVArh, also TOD Energy Measurement for quadrant 1,2,3,4
- Warranty: 60 Months
- Cat No:- WR300BC63MSDLMS
L&T 40-200 In-Built CT 3ph Gen Meter
Usage as: Unidirectional / Solar Generation for MSEDCL or MSEB / Sub Energy Meter 3Ph 4 Wire
- 3Phase 4Wire 3*240V
- 40-200A
- Accuracy 1.0
- 4G TTM MSEDCL
- Measurement : KWh, V, A, KVAh, KVArh, also TOD Energy Measurement for quadrant 1,2,3,4
- Warranty: 60 Months
- Cat No:- WR300BC9DMSEDCL

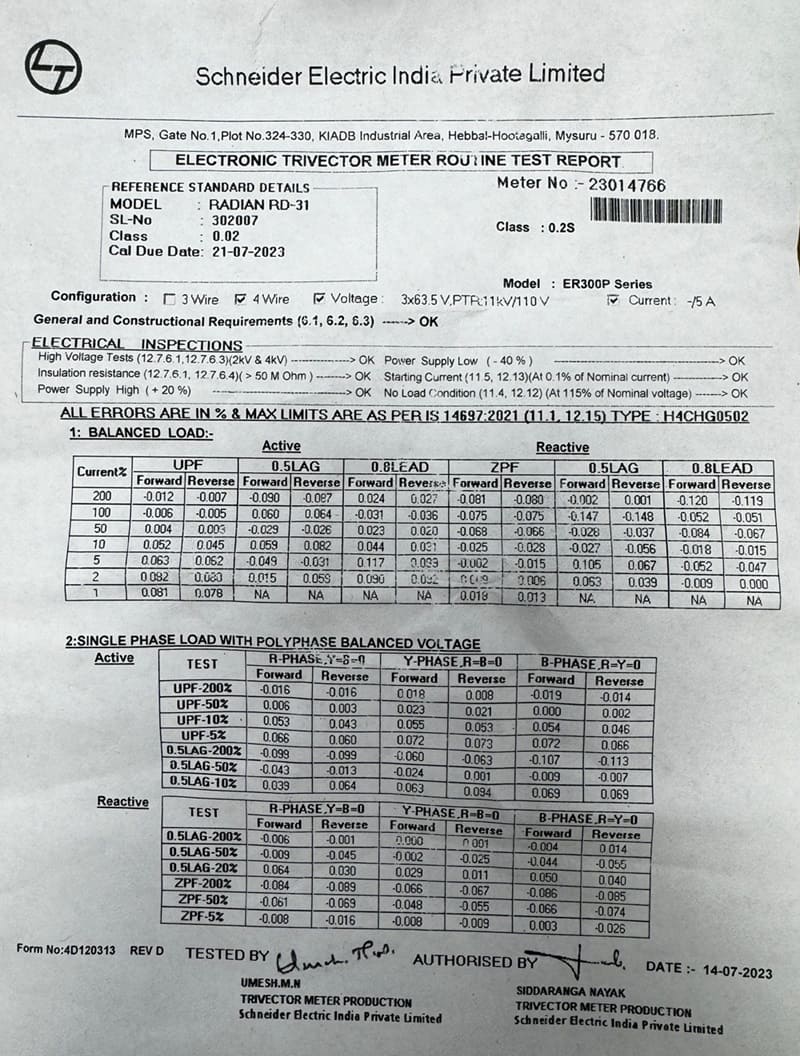

L&T ABT Meter
Usage as: ABT Meter 5-10A HT 11kV/110V for Distribution (MSEDCL/MSEB electricity board) for open access solar or wind project
- 3Phase 4Wire, 63.5V TVM
- 5-10A PTR
- 11kV/110V
- Accuracy: 0.2S
- 4PORT B MSEDCL
- Measurement : KWh, V, A, KVAh, KVArh
- Warranty: 60 Months
- Cat No:- WR300BB51ABTMSEDCL
L&T LTCT -/5 A
Usage as:Unidirectional / Solar Generation for MSEDCL or MSEB / Sub Energy Meter 3Ph 4 Wire Used instead of 50/5, 100/5, 150/5, 200/5 by adjusting multiplying factor.
- 3Phase 4Wire LTCT TVM 240V
- -/5A
- Accuracy 0.5s
- RS232 A MSEDCL.
- Measurement : KWh, V, A, KVAh, KVArh also TOD Energy Measurement for quadrant 1,2,3,4.
- Warranty: 60 Months
- Cat No:- WR300BC52M0MXDLMS.
