BOS Material
ACDB | DCDB | DC Cable | MC4 Connectors
BOS Material
Supply of Solar BOS Components
Oriana Solar offers solar cables, solar connectors, ACDB & DCDB. Oriana is one of the leading supplier and stockist of high quality and premium brands solar PV BOS Components. We supply material to PAN India.
Waacab
Quality is our top priority
Oriana’s seasoned engineers are highly competent in conducting inspection for BoS components and ensure that high-grade products meeting industrial standards are manufactured.
Let's Connect
Waacab ACDB: Waaree
ACDB 1ph 32A 1In 1Out
Technical specs:
- AC Distribution Box for 1 KW- 5 KW solar project
- 1ph 230 Volt
- MCB: 25 A, 2 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 180X130X100mm (IP 65/66)
- AC Cable – 4 Sqmm
- Terminal Connector – 6 Sqmm – 41A
- With Red Phase Indicator
Waacab ACDB: Waaree
ACDB 3ph 32A 1In 1Out
Technical specs:
- AC Distribution Box for 4 KW- 12 KW solar project
- 3ph 415-440 Volt
- MCB: 32 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 220X190X100 mm (IP 65/66)
- AC Cable – 6 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator
Waacab ACDB: Waaree
ACDB 3ph 40A 1In 1Out
Technical specs:
- AC Distribution Box for 15 KW- 20 KW solar project
- 3ph 415-440 Volt
- MCB: 40 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 280X190X130 mm (IP 65/66)
- AC Cable – 10 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator
Waacab ACDB: Waaree
ACDB 3ph 63A 1In 1Out
Technical specs:
- AC Distribution Box for 20 KW- 25 KW solar project
- 3ph 415-440 Volt
- MCB: 63 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 280X280X130 mm (IP 65/66)
- AC Cable – 10 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator
Waacab DCDB: Waaree
DCDB 1 In 1 Out 1 Spd 1000v
Technical specs:
- DC Distribution Box for 1Kw - 3KW solar project
- 1 In 1 Out
- 1 SPD: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: 180X130X100 (IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 1 In 1 Out 1 Spd 600v
Technical specs:
- DC Distribution Box for 1Kw - 5KW solar project
- 1 In 1 Out
- 1 SPD: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: 180X130X100 (IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 2 In 2 Out 2 Spd 1000v
Technical specs:
- DC Distribution Box for 4Kw - 12KW solar project
- 2 In 2 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder- 30A
- Box Size: – 220X190X100 (IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 2 In 2 Out 1 Spd 1000v
Technical specs:
- DC Distribution Box for 4Kw - 12KW solar project
- 2 In 2 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 220X190X100 (IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 3 In 3 Out 3 Spd 1000v
Technical specs:
- DC Distribution Box for 12Kw - 17KW solar project
- 3 In 3 Out
- 3 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder- 30A
- Box Size: – – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 3 In 3 Out 2 Spd 1000v
Technical specs:
- DC Distribution Box for 12Kw - 17KW solar project
- 3 In 3 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 4 In 4 Out 4 Spd 1000v
Technical specs:
- DC Distribution Box for 20Kw - 25KW solar project
- 4 In 4 Out
- 4 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
Waacab DCDB: Waaree
DCDB 4 In 4 Out 2 Spd 1000v
Technical specs:
- DC Distribution Box for 20Kw - 25KW solar project
- 4 In 4 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
Waacab Cable: Waaree
DC Cable: 4 Sq mm
Product specs:
- SKU: SDCR 1 CORE X 4 SQMM BLACK
- Weight: 6.00 KGS
- Packaging Type: Roll
- Conductor Material: Copper
- Ideal For: Solar System
As per Standard IEC 60228 and EN 50618
Waacab Cable: Waaree
DC Cable: 6 Sq mm
Product specs:
- SKU: SDCR 1 CORE X 6 SQMM BLACK
- Weight: 8.00 KGS
- Packaging Type: Roll
- Conductor Material: Copper
- Ideal For: Solar System
As per Standard IEC 60228 and EN 50618

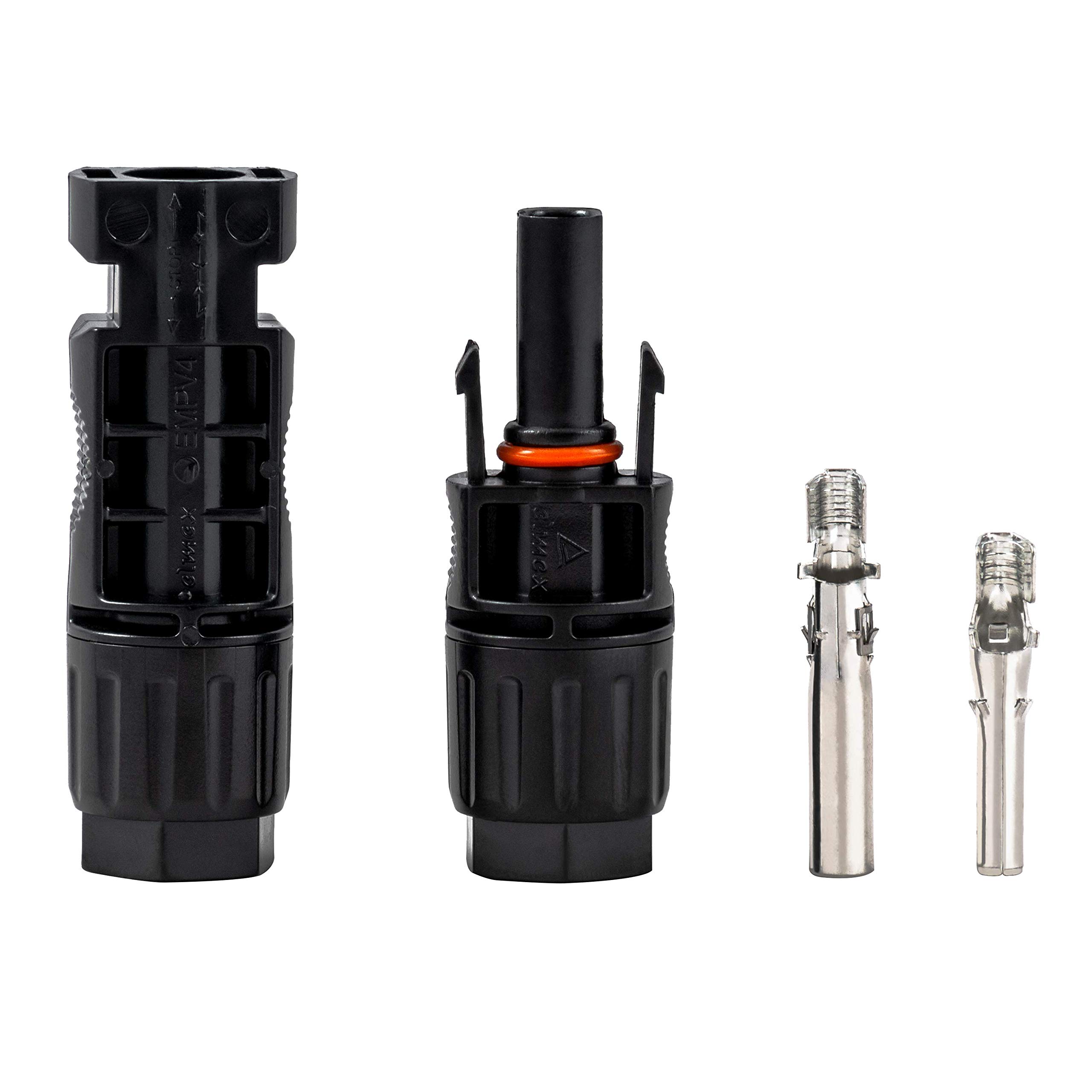

Waacab MC4 Connectors: Waaree
MC4 Connectors
LQ 1, 2 in 1 Branch Connector, 3 in 1 Branch Connector, 4 in 1 Branch Connector, 5 in 1 Branch Connector, Fuse Connector, Y Connector
Product specs:
- Copper with Tin Plated
- 30 A
- 1500 V DC
- IP68
